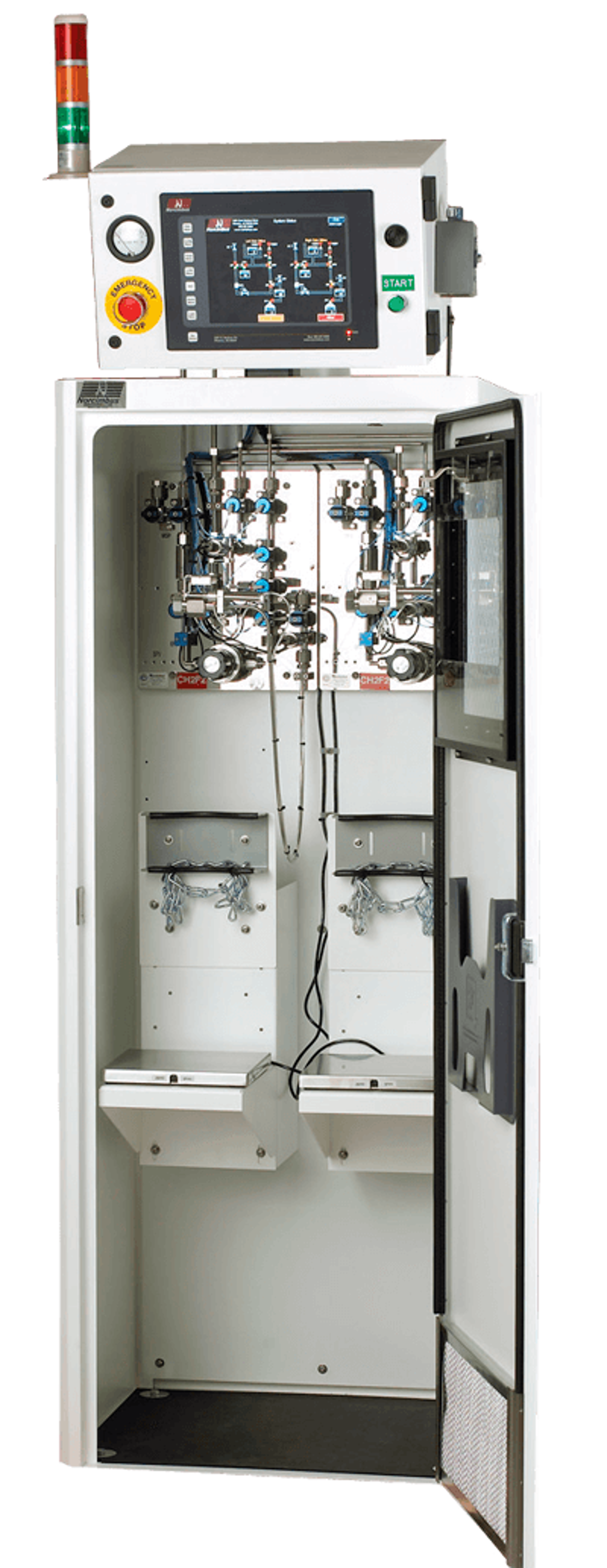

Gas Cabinets
Gas Cabinets
A wide range of cabinets, controllers and panels can be configured into a system engineered to match your needs. In addition, extensive options are available to meet the industry standards in nearly every gas system. Gas Distribution Systems have a proven record for semiconductor applications with 99.999% uptime. Exentec also provides custom systems and solutions in circumstances where standard configurations are not sufficient. The family of controllers includes a manual switch for cylinder changeover, a semi-automatic changeover that monitors pressure or cylinder weight and fully automated changeover, complete with user-configurable alarms and operating parameters, such as timers and set points.
Contact us for assistance in developing a system that meets your needs.
- High Pressure
- Low Pressure
- High Flow
- Liquified Gases
Features & Benefits
- Inert, toxic hazardous gases; semi-auto or fully automatic with a touchscreen interface
- Cabinet or rack-mounted
- Single-, dual- and multiple-process panel configurations
- Optional purge panel with purge procedure proven in corrosive applications, such as F2, HF, HCl, and WF6
- Engineered to process requirements
- Life safety relay logic to override PLC for fire, leak, toxic and facility shutdowns with relay feedback
- Modular construction improves service and maintenance
- SEMI-S2 compliant
Controller Options
- Manual switch for automatic cylinder changeovers
- Semi-auto systems with automatic switchover
- Fully automated systems with purge routines
Cabinet Options
- 1-,2-, and 3-cylinder gas rack
- 1-,2-, and 3-cylinder gas cabinet
Panel Options
- Purge panel
- Regulator
- Purifiers
- Pressure switch
- Transmitter
- Process panel
- Manual panels, 3–8 valves
- Automatic panels, 5–8 valves
- Purifiers & filters
- Pressure switches
- Transmitters
- Flow switches
- Test valves
- Manual isolation valves
- Emergency shutoff valves
Gas Cabinet Enclosure
- M1 & 2 cylinder: 26’’ W x 28” D x 90” H with 6” exhaust
- 3 cylinder: 42” W x 28” D x 90” H with 6” exhaust
Safety Options
- UV/IR sensor
- Temperature switch
- Leak sensor
- Door interlocks
- Remote shutdown relays
- EMO
- Sprinklers
- Heat
- Cool (Chiller)
